COMPREHENSIVE SYSTEM OF ESP FIXING BRACKETS

At this point we would like to introduce our comprehensive system of fixing brackets. Most of our plastic holders can be supplied with different hinges that the ESP holder fits exactly to your needs. Holders with these clamps can be placed on a duty belt, tactical vest or a gadget with MOLLE. Sheer majority of these hinges allows holder rotation in full 360° range, which is already typical feature for our holders. You can choose from the following fixation brackets:

System UBC-01

This type of buckle enables rapid insertion of the holder on a belt with one hand only and without necessity of unbuckling the belt. The holder can be rotated in respect to the belt by full circle of 360 degrees with 16 locking positions. This buckle is patented in Europe (EP 1604587), in the USA (US Pat.: 7.380.692) and in Russia (RU Pat.: 2352233).

System UBC-02

This flat quick-coupling clip enables rapid insertion of the holder on a belt with one hand only and without necessity of unbuckling the belt. In comparison with fastening clip UBC-01, the distance between the belt and the holder is smaller with this type of clip. The holder can be rotated in respect to the belt by full circle of 360 degrees with 16 locking positions. It can be fastened also to a MOLLE MIL STD webbing.

System UBC-03

The holder is inserted in usual way by slipping the belt through the hole in the clip. The clip can be adjusted to the belt width by adjustable stop with two bolts. The holder can be rotated in respect to the belt by full circle of 360 degrees with 16 locking positions.

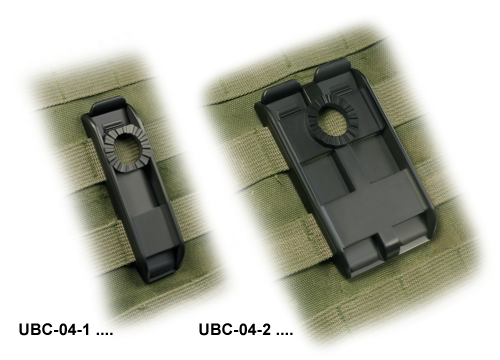

System UBC-04-1 / UBC-04-2

This type of bracket allows secure and firm fixation of ESP holders to a MOLLE MIL STD webbing with possibility of 360° rotation and fixing in 16 angled positions. ESP holders (supplied with UBC-04 bracket) can be arbitrary attached to any present-day tactical/ballistic vest or tactical backpacks just by inserting the plastic locking rod into the UBC-04 body through a MOLLE ladders. Bracket is available in single-row (UBC-04-1) or double-row version (UBC-04-2) for a heavier or a larger gadget.

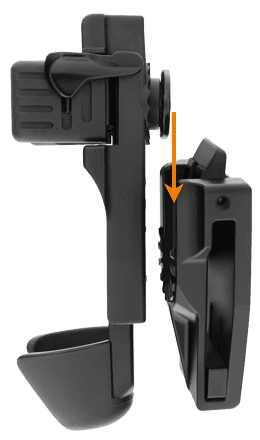

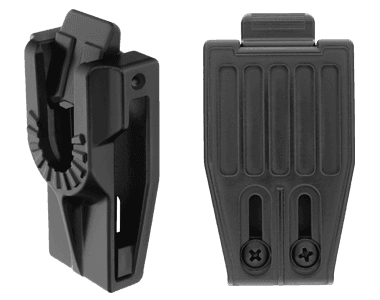

System UBC-05

This universal belt clip enables the user to quickly change between different plastic and nylon ESP holders with rotation mechanism. The clip itself remains fastened to the belt – you only need to click on the holder of choice. Thanks to this highly flexible system, the user is able to change his or her equipment according to the particular needs at a given moment. A baton holder can be switched for a magazine holder or for a flashlight holder. In case of need – for example when the police officer is busy with administrative work – the holders that are currently not necessary can be put away completely. The belt is pulled through the opening in the body of the clip. The holder is then slid onto the clip and secured with locking mechanism. The clip can be adjusted to belt width from 32mm to 60mm with the use of an adjustable stop with two bolts. The holder can be rotated in respect to the belt by full circle of 360 degrees with 16 locking positions.

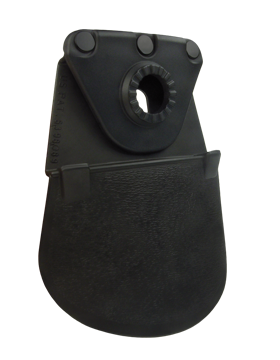

“Paddle” type fixture from the renowned company Fobus, enables a comfortable carrying of holder. The paddle has been designed for carrying on ordinary clothes and it tightly fits the user’s body. Its special bent shape holds firmly the holder during carrying. This fixture, as one of few paddle type fixture on the market, enables also a smooth rotation in respect to the belt in full circle of 360°, with 16 locking positions.

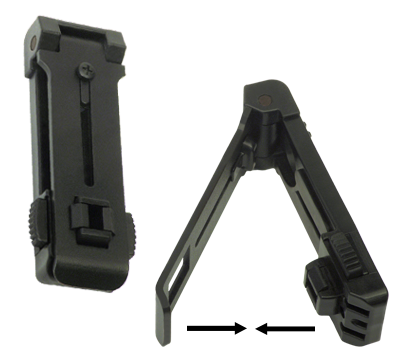

Metallic Clip

Metallic clip enables rapid insertion of the holder on a belt (without necessity of unbuckling it) or to a tactical vest. It can be alternatively fastened also to a MOLLE MIL STD webbing.

Summary Table
